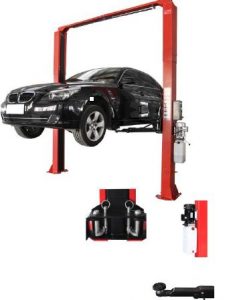

4.2TON BASE PLATE MANUAL RELEASE CAR LIFT (FL8214)



ALSO AVAILABLE IN ELECTRIC RELEASE (FL8214E)



DESCRIPTION:

  • Adjustable lifting adaptor with in height 90mm for sports vehicles.
  • 115% dynamic loading and 150% static loading test.
  • Aluminium motor to avoid damage by heat.
  • Preset rated loading pressure avoid overloading.
  • Inside width 2,850 mm suitable.
  • With multi-functional hydraulic valve board, can be released when power down.
  • Lifting height 1,930 mm, suitable for different operators.
  • Professional chain cover design.
  • Professional powder coating.
  • Door protection rubber pad, toe protection.
  • Manual release.
  • Explosion-proof valve.

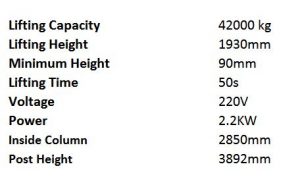

TECHNICAL SPECIFICATION



* Colour and design may differ.

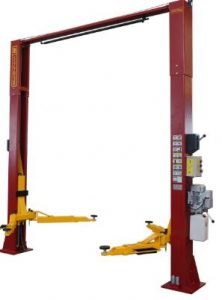

4.2TON BASE FREE MANUAL RELEASE CAR LIFT (FL8244)



ALSO AVAILABLE IN ELECTRIC RELEASE (FL8224E)



DESCRIPTION:

  • Adjustable lifting adaptor with in height 90mm for sports vehicles.
  • 115% dynamic loading and 150% static loading test.
  • Aluminium motor to avoid damage by heat.
  • Preset rated loading pressure avoid overloading.
  • Inside width 2,850 mm suitable.
  • With multi-functional hydraulic valve board, can be released when power down.
  • Lifting height 1,930mm – suitable for different operators.
  • Professional chain cover design.
  • Professional powder coating.
  • Door protection rubber pad – toe protection.
  • Manual release.
  •  Explosion proof valve.

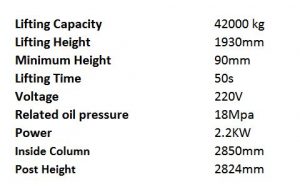

TECHNICAL SPECIFICATION:





* Colour and design may differ





5TON BASE FREE CAR LIFT (FL8215E)



DESCRIPTION:

  • Height adapter included.
  • Screw-up adapters and three stage arms included.
  • 115% dynamic loading and 150% static loading test.
  • Aluminium motor prevents overheating.
  • 24V top limitation switch prevents damage to roof of vehicle.
  • Hydraulic pressure pre-setting avoids raising vehicle exceeding rated capacity.
  • Powder-coated painting.
  • 24V operating button.

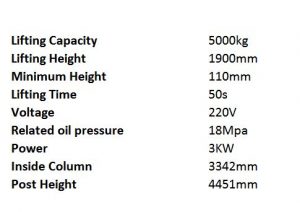

TECHNICAL SPECIFICATION:





* Colour and design may differ.

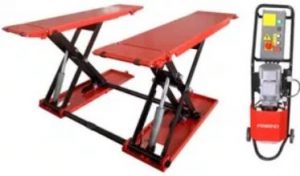

3TON MID RISE CAR LIFT (MR30)



DESCRIPTION:

  • Aluminium motor prevents overheating.
  • IP54 ABS control box and 24V operating button.
  • 24V top limitation switch prevents damage to roof of vehicle.
  • Hydraulic pressure pre-setting avoids raising vehicle exceeding rated capacity.
  • Pneumatic safety lock.
  • Toe protection.
  • Optional mobile kit makes more flexible use.
  • Platform extension makes possible service for more vehicles.

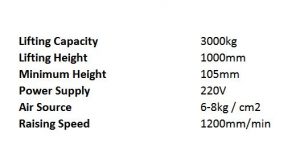

TECHNICAL SPECIFICATION:





* Colour and design may differ.
