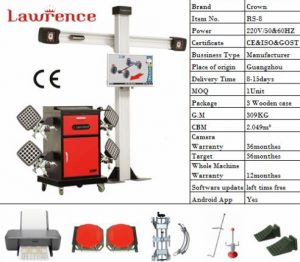

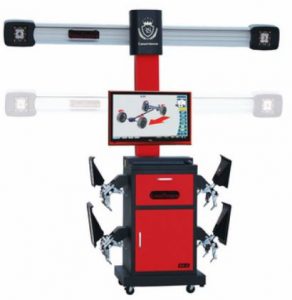

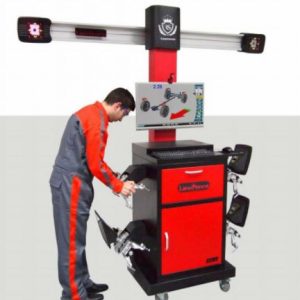

LAWRENCE I-9 3D ALIGNER



DESCRIPTION:

  • Simple operation, get familiar in 5 minutes.
  • Accurate measurement, responsible for car owners.
  • Free rolling compensation for maximum efficiency.
  • Three dimensional operation system leader.
  • Three dimensional animated guidance.



FEATURES:



High Precision Industrial Digital Camera:

  • Continuously monitoring on target position.
  • Feedback on target state at any time.
  • Providing accurate dynamic measuring results.



Unique Accurate Targets

  • Small size applied to front and rear.
  • Round corner design, more reasonable and humanized.
  • Not affected by strong light.
  • No electronic component or cable, low maintenance.



3D Display Interface

  • Global origination.
  • Authentic effect.
  • Clear and easy to understand.
  • Controllable, more user-friendly.



Image Stabilising System:

  • Self developed technology.
  • Enable free rolling compensation.
  • Stable shooting, accurate reading.

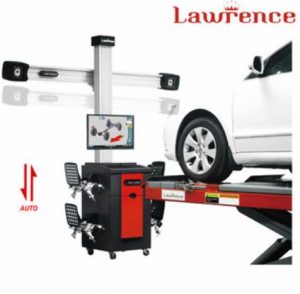

IAA Lifting System:

  • Global origination, leading technology.
  • Intelligent control, accurate alignment.
  • No human intervention, more efficient.
  • Automatically track targets, ready for users to easily obtain the best measurement position.



Animated Instructions:

  • Complimentary reminding.
  • Vivid and humanised.



Dual Display System:

  • Great user-friendly in operation at any point.



Patented Small Sized Console:

  • Exquisite and fashionable.
  • Space saving.



Free Rolling Compensation:

  • No complex wheel compensation required for the wheel theoretic plane.
  • One push only to complete the precise measurement.
  • Shorter testing time.



2/4 Wheel Alignment

  • Front wheel alignment is suitable for small busses, light trucks with long wheelbases and pickups without rear wheel adjustment.



Smart Toe 1

  • Adjust the toe without steering wheel holders for vehicles with big backlash.
  • The steering will always be centre.



Smart Toe 2

  • Turn the front wheels left or right and access difficult adjustment points while still displaying centered readings.
  • Reduce the redundant steps from front toe adjustment centre.



Cross Diagonal

  • Identifying vehicle frame or structural conditions.
  • G mood helper in alignment adjustment.



Two Adjustment Models:

  • Two adjustment models of displaying the measuring and adjusting results are available in the program.



Jack Up Adjustment:

  • After alignment measurement, the values can be frozen for jack up adjustment.





*Colours and design may differ

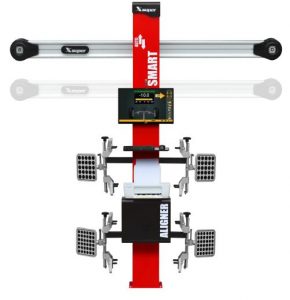

X-96 3D ALIGNER



DESCRIPTION:

  • Equipped with 5M HD cameras.
  • Compact all-in-one cabinet.
  • Aluminium beam with Smart Auto Tracking System.
  • Ergonomic durable targets.
  • Universal wheel adaptors.
  • Over 40 000 vehicle specs.
  • Rich help videos.
  • Multiple languages.
  • Drive-on camera assistant.







*Colours and design may differ

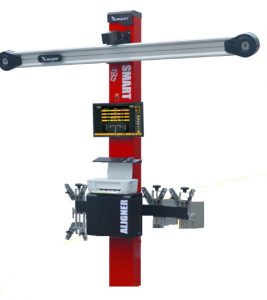

X-86 3D ALIGNER



DESCRIPTION:

  • Equipped with 5M HD cameras.
  • Compact all-in-one cabinet.
  • Aluminium beam with Smart Auto tilt system.
  • Ergonomic durable targets.
  • Universal wheel adapters.
  • Over 40,000 vehicle specs.
  • Rich help videos.
  • Multiple languages.
  • Drive-on camera assistant.





*Colours and design may differ

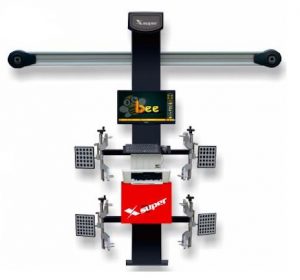

X-66 3D ALIGNER



DESCRIPTION:

  • Steel beam and column.
  • Optional dual display system.
  • Ergonomic durable targets.
  • Universal wheel adapters.
  • Over 40,000 vehicle specifications.
  • Rich help videos.
  • Camera drive-on aid.
  • Multilingual voice-over.
  • Vehicle body dimension measurement.







*Colours and design may differ
